CO sensors monitor 700 parking spaces at Al Mutahidah Towers, Qatar


Gas alarm devices from MSR-Electronic protect people and parking areas from increased CO concentrations on several parking decks


Pure luxury meets maximum safety. The Al Mutahidah Towers offers apartments of different sizes along with a range of penthouses, studios and other innovative residential models, all overlooking the waterfront and the marina of The Pearl-Qatar island.

Nothing is lacking here with indoor lounges, billiard hall, indoor and outdoor pools. There are also fitness rooms, BBQ area, Kid’s area, rooftop relaxation areas, laundry service and numerous infrastructures as well as other amenities.


Absolute safety from CO poisoning with gas sensors (type SC2) from MSR-Electronic

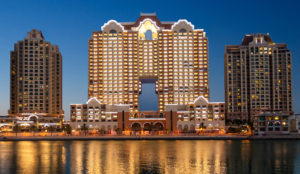

Tower in Qatar shining in the evening


A 3-storey car park with over 700 parking spaces is available to residents within the Al Mutahidah Tower.

The car park meets all safety standards and is equipped with a gas warning system from MSR-Electronic in compliance with EN 50545-1 and EN 50271.

The CO sensors monitor the harmful gas in the air, protecting people and the facility from dangerous situations in this car park.

Carbon monoxide (CO) is a highly toxic, odourless and colourless gas. It forms during the combustion process in car engines. It therefore poses a serious health risk, especially in underground garages. At high concentrations, it can be fatal.

The use of CO sensors is therefore mandatory for public garages.


Solutions from MSR for reliable gas monitoring


CO sensors from MSR-Electronic


SC2 Sensor in gray

©MSR-Electronic GmbH, Germany, CO gas sensor SC2

The SC2 exchangeable sensor includes a digitalised measured value processing and self-control and is employed for continuous monitoring of the ambient air.

It is used to detect toxic gases and oxygen. In addition to the electrochemical sensor element and the measuring amplifier, it contains a μController for measured value processing.

All relevant data and measured values of the sensor element are stored in the μController in a fail-safe manner and are transmitted digitally via the local bus to the Sensor Board (e.g. SB2 or MSB2 from MSR).

The calibration management is also integrated in the μController of the sensor.

Calibration is done by simply replacing the sensor or by using the integrated, convenient calibration routine directly on the system.


Digital-Gas-Controller DGC-06


gray DGC housing with green screen

©MSR-Electronic, Controller System DGC-06

The DGC-06 is used for the monitoring and warning of toxic and combustible gases and vapours as well as of Freon refrigerants within a wide range of the gas measurement technique.

Numerous adjustable parameters and set-points permit individual adaptation to many applications.

The DGC-06 Gas-Controller also fulfils the functions of CO monitoring in:

  • garages
  • tunnels
  • go-kart tracks

It is compliant with the current EN 50545-1.




Further information on MSR products can be found here in the current MSR-Electronic online catalog or in the webshop

The entire support and installation of the MSR gas warning system in the Al Mutahidah Towers was carried out by the MSR Partner Systemair, Qatar.

MSR-Electronic is a manufacturer of fixed gas warning systems with decades of experience in the field of gas measurement technology.  The international company with headquarters in Germany has a wide range of methods for the detection of toxic, combustible gases and oxygen. On this basis MSR-Electronic develops individual gas sensors, controllers and warning devices for many applications, such as  parking garages, tunnelspetrochemical industry  or  shipping. The products meet more than the  general standards and regulations  and can therefore guarantee the safety of the plantIf you have any questions please send us an email or give us a call.
